LABORATORY R&D SMALL-SCALE PRODUCTION
Exodus M-600
The EXODUS M-600 Integrated Multi-Channel Nanoparticle Isolation System is an automated platform for nanoparticle purification and enrichment. Powered by ultrasonic nanofiltration, the system integrates multiple isolation processes with specific impurity removal technologies, enabling efficient purification, enrichment, and recovery of exosomes, extracellular vesicle subtypes, viruses and virus-like particles, and lipid nanoparticles. The purified nanoparticles are suitable for downstream characterization, biomarker discovery, translational research, and therapeutic applications.
Key Features

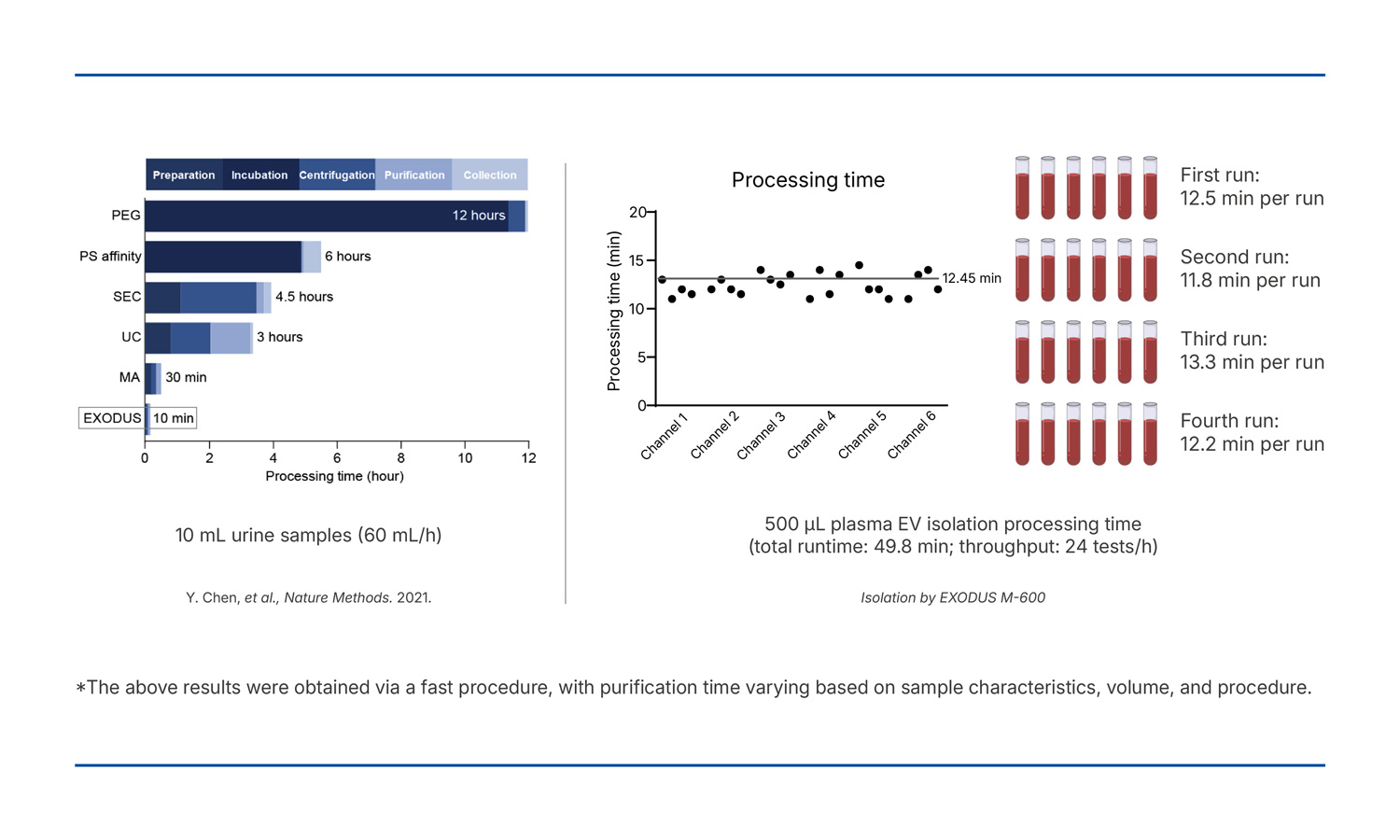

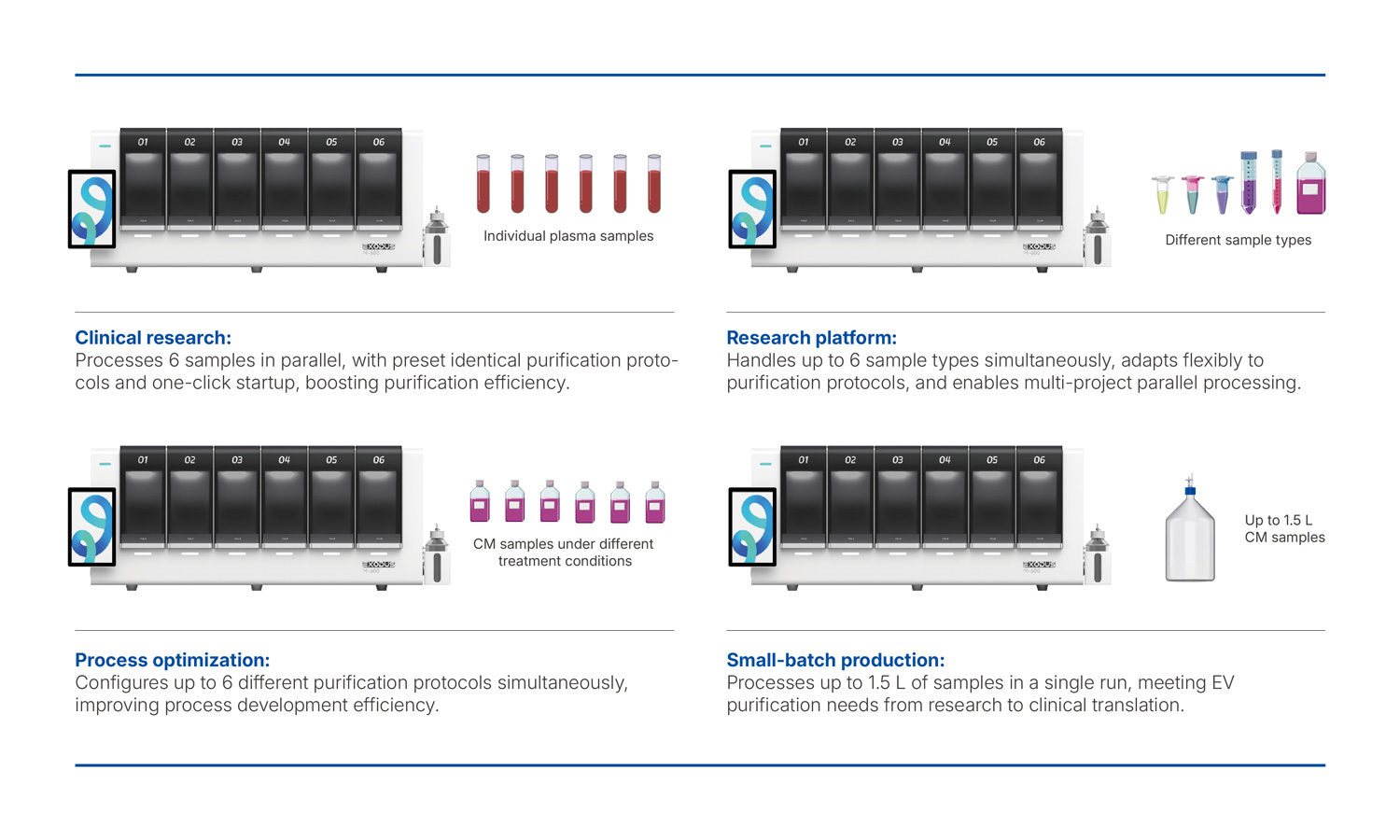

Independent Multi-Channel Control
- 6 channels with synchronous or independent operation
- Batch processing of identical samples and flexible parallel isolation of different samples
View Data

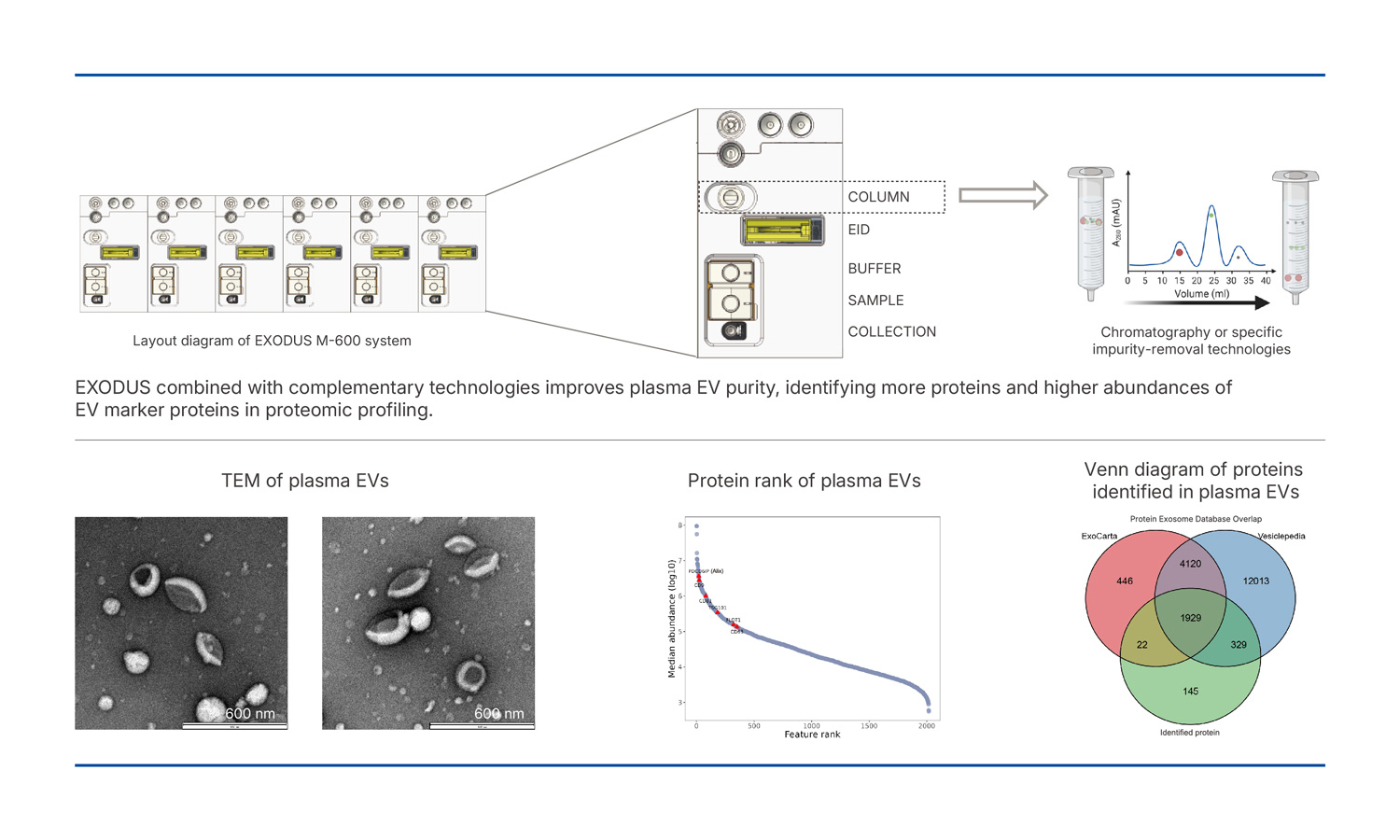

Integrated Isolation Technology
- Integration of preprocessing and ultrasound-assisted nanofiltration for specific purification
- Enhanced purity of EVs from complex samples
View Data
Broad Applications
Exosome
Virus
LNP
Gene Therapy
Drug Delivery
Liquid Biopsy
Regenerative Medicine
Specifications
| Isolation Principles | Combination of the negative pressure oscillations (NPO) and double coupled harmonic oscillations (HO) on nanoporous membrane |
| Sample Types | Plasma, urine, saliva, cerebrospinal fluid, tears, aqueous humor, synovial fluid, tissue, cell culture medium, bacterial culture medium, cell-derived vesicle, plant, etc |
| Number of Channels | 6 |
| Isolation Device Size | S/M/L |

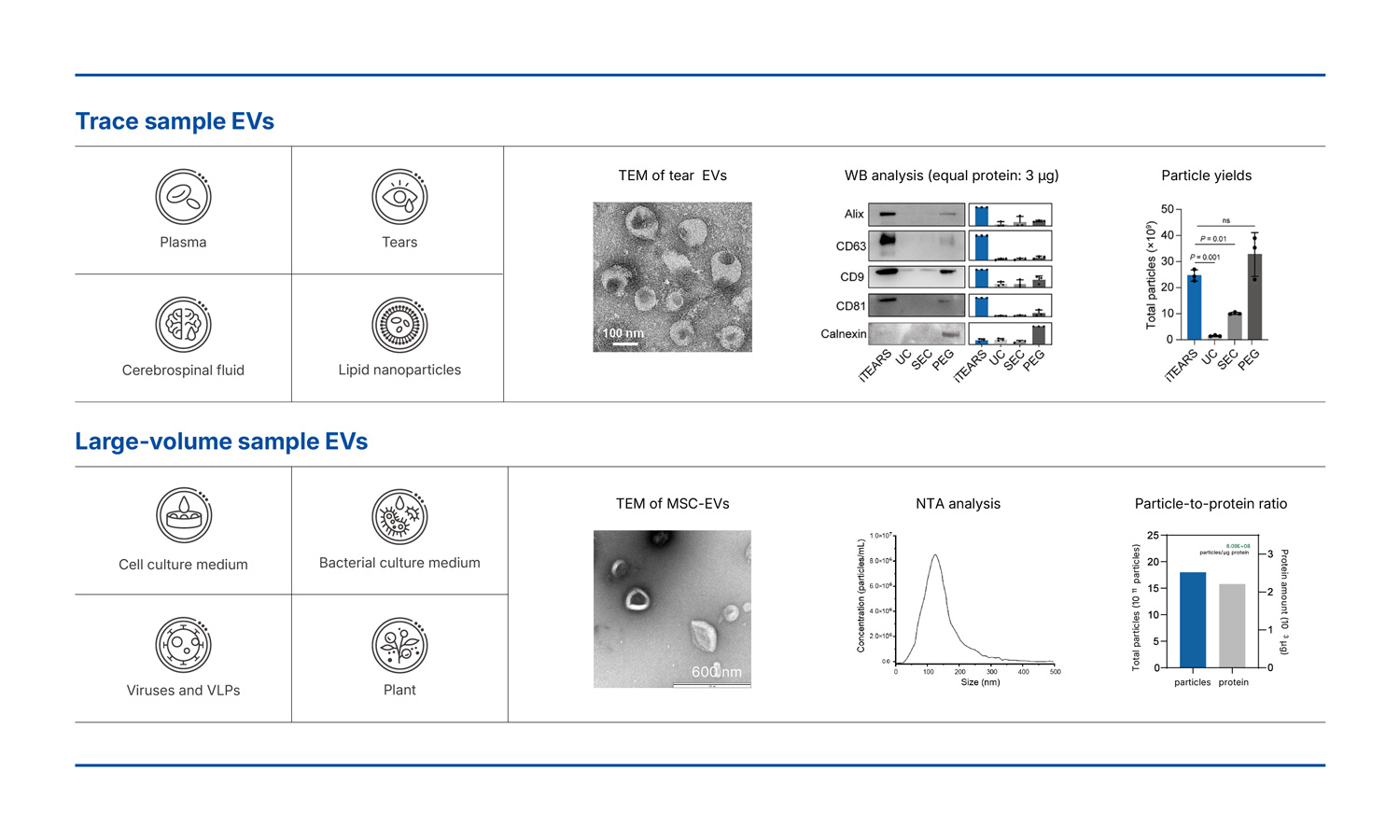

| Sample Volumes | 10 μL-1.5 L |
| Processing Speed | Max processing speed 1.2 L/h |
| Ultraviolet Sterilization | Internal UV lamp, tautomatically turns off after 30 min |
| Temperature Control | Sample position, buffer position, and exosome recovery station, with controlled temperature range of 2-8 °C |
| Display Screen | Features an 1.6-inch TFT touchscreen screen that provides real-time updates on temperature, pressure, processing time, and operating station operation without the need for an additional computer |
| System Interface | 1 power port, 2 USB ports, and 1 network port |
| Dimensions | 510 × 1280 × 480 mm(H × W × D) |
| Net Weight | 120 kg (264.5 lbs) |
| Operating Environment | Voltage: AC110 V-240 V 50/60 Hz Operating Temperature: 10-30 °C Operating Humidity: 30-85 %, non-condensing |
